Low Speed Performance AC Dynamometer 573Nm For Diesel Engine Test

Name: Low Speed Performance AC Dynamometer 573Nm For Diesel Engine Test
Brand: SEELONG
Price: 1 USD

Brand Name : SEELONG

Model Number : SSCD60-1000/4000

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : Confidential

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 8-12 weeks

Packaging Details : 1200mmX2000mmX1800mm wooden box per set

Power : 60KW

Rated torque : 573Nm

Max working speed : 4000rpm

Constant power range : 1000-3800rpm

Constant torque range : 0--1000rpm

Measurement accuracy : 0.05/0.2/0.5

Contact Now

Low Speed Performance AC Dynamometer 573Nm For Diesel Engine Test

Introduction

AC Dynamometer is currently the most advanced dynamic loading test equipment on the market. Compared with other types of dynamometers, its performance reliability is distinctly better, and maintenance is much easier.

AC Dynamometer For Diesel Engine Test

Research on engine performance test and control;
Fuel performance test and research;
Research on engine emission performance;
Optimization of ECU control strategy;
Optimization of engine parts;
Engine combustion analysis, etc.

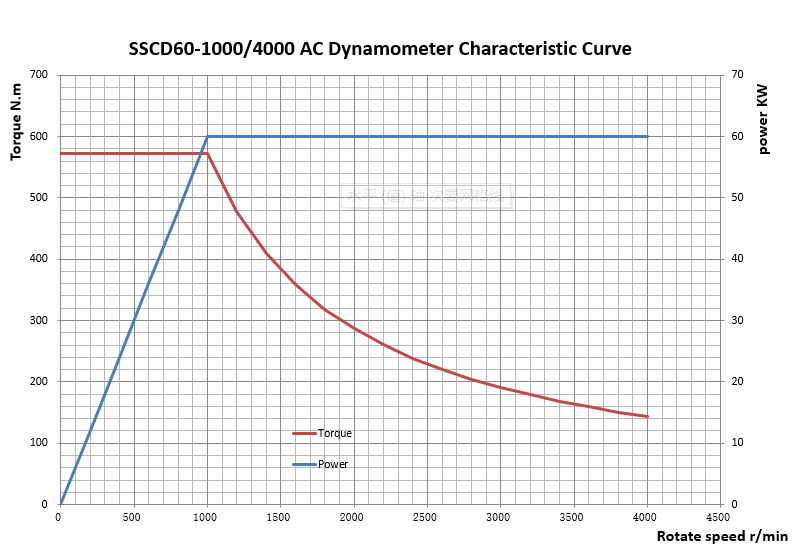

Characteristic curve

Low Speed Performance AC Dynamometer 573Nm For Diesel Engine Test

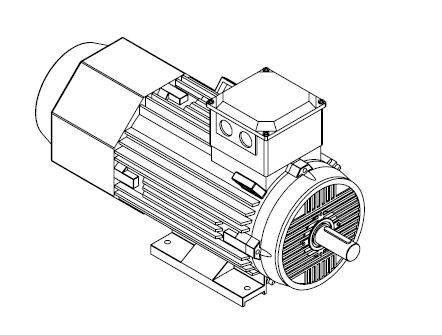

3D Diagram of Dynamometer

Application case

Low Speed Performance AC Dynamometer 573Nm For Diesel Engine Test
