Low Speed 859Nm AC Dynamometer& Electric Dynamometer For Gear Box Test

Name: Low Speed 859Nm AC Dynamometeramp Electric Dynamometer For Gear Box Test
Brand: SEELONG
Price: 1 USD

Brand Name : SEELONG

Model Number : SSCD90-1000/3500

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : Confidential

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 8-12 weeks

Packaging Details : 1200mmX2000mmX1800mm wooden box per set

Power : 90KW

Rated torque : 859Nm

Max working speed : 3500rpm

Constant power range : 1000--3000rpm

Constant torque range : 0--1000rpm

Measurement accuracy : 0.05/0.2/0.5

Contact Now

Low Speed 859Nm AC Dynamometer& Electric Dynamometer For Gear Box Test

Introduction

SSCD Series AC dynamometer produced by Seelong comprises a three-phase asynchronous AC motor (including high-precision speed encoders, precision torque flange), controlled by four quadrant operation AC inverter cabinet, and connected with control systems and acquisition system.

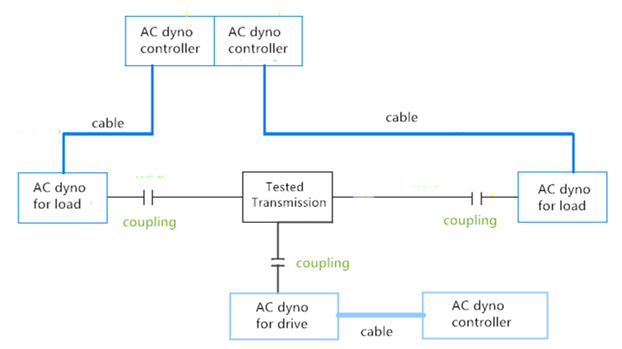

Working principle

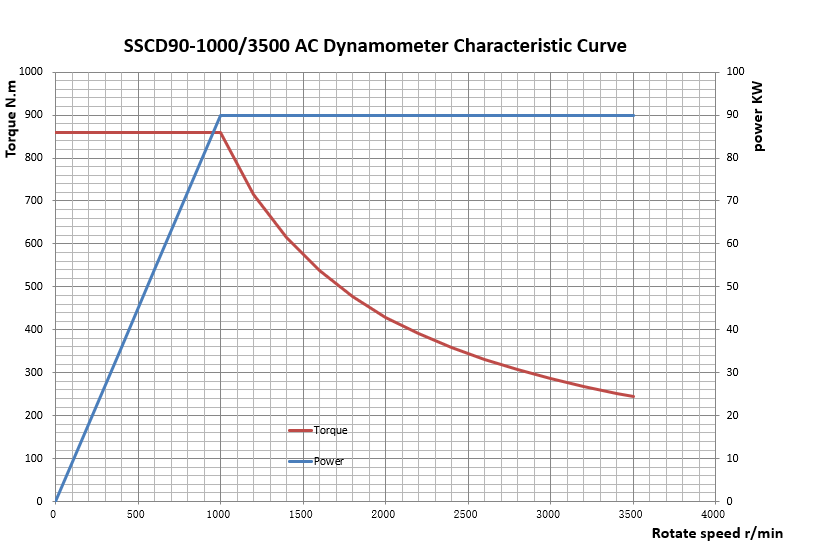

Characteristic curve

Low Speed 859Nm AC Dynamometer& Electric Dynamometer For Gear Box Test
