CMC 120KW 22.9Nm 100,000rpm customized High Speed Dynamometer（NEW）

Name: CMC 120KW 229Nm 100000rpm customized High Speed DynamometerNEW
Brand: SeeLong
Price: 25000 USD

Brand Name : SeeLong

Model Number : SSJH120- 5W/10W

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : USD 25000-75000dollar

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 10-12weeks

Packaging Details : 1500mmF*1000mm*2000mm wooden box

power : 120KW

Torque accuracy : ±0.05%FS

Speed accuracy : ±1rpm

Rated torque : 22.9Nm

Constant power speed : 50000-100000rpm

Constant torque speed : 0-50000rpm

Overload : 120%

Contact Now

11.1Nm 100000 Rpm High Precision High Speed Dynamometer

22.9Nm 100000 Rpm High Precision High Speed Dynamometer

Overview

The eddy current dynamometer is composed of brake, force measuring mechanism and speed measuring device.

Operating principle

The eddy current dynamometer is mainly composed of a rotating part (induction body), a swinging part (armature and excitation part), a force measuring part and a correction part.
The shape of the inductor is like a spur gear, and the eddy current is generated on the hole wall of the magnetic conducting eddy current ring.
After the field winding is connected with direct current, a closed flux is generated around the field winding.
When the inductor is rotated by the prime mover, the air-gap magnetic density changes periodically with the rotation of the inductor, and the eddy current electric potential will be generated on the surface of the eddy current ring hole and within a certain depth range, and the eddy current will be generated. The magnetic field formed by the eddy current will interact with the air gap magnetic field, and the braking torque will be generated.
The torque is transmitted to the force measuring device through the outer ring and the force transmission arm, and the force sensor converts the magnitude of the force into electrical signal output, so as to achieve the purpose of torque measurement.purpose of measuring the torque.

Specifications (Can be customized)

Model	Power(KW)	Torque(Nm)	Constant torque Range(rpm)	Max Speed(rpm)	Torque Measurement Accuracy
SSJH30	30	4.8	0-60000	120000	0.05%FS
SSJH70	70	11.1	0-60000	100000	0.05%FS
SSJH120	120	22.9	0-50000	100000	0.05%FS
SSJH300	300	71.6	0-40000	80000	0.05%FS

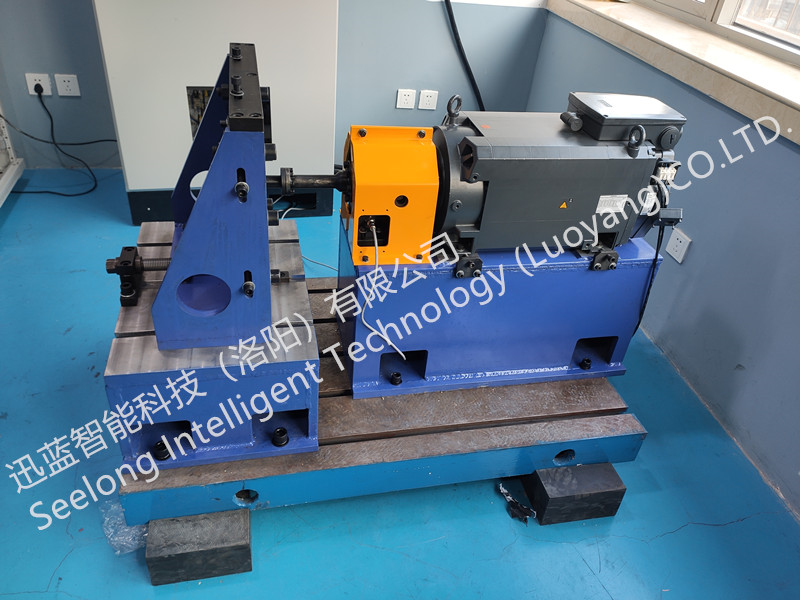

Application cases
