SLZN - 10000 Axis Dynamic Torque Sensor 10000N.m 0.5%FS High Speed Torque and Rotational Speed Measurer
10000N.m 0.5%FS SLZN Large Range Torque Sensor Dynomometer facilities
Product introduction
This type of torque sensor adopts the bridge strain electrical measuring technology, with a set of ring transformer non-contact provide power supply, using signal coupler instead of ring transformer of micro power consumption non-contact signal, effectively overcome the inductive coupling signal energy and high harmonic interference ring transformer for mutual interference signal ring transformer, at the same time the output spike pulse into a square wave signal, etc. Therefore, this series of torque sensors can run for a long time at high speed, and have been widely praised by users in the dynamic torque measurement industry. This series of torque sensor is developed on the basis of the proprietary technology of strain bridge. With the help of torque power meter, it can directly detect the torque, speed and power of motor, reducer, engine, drill and other transmission machinery.
Main Features
- To measure the static torque, to measure rotation torque
- Testing precision, good stability, strong anti-interference performance
- No need to repeatedly zero but continuous measurement and reversing torque
- Strain elastic body strength, can bear 150% load
Application
1.Testing the output torque and power of motor, engine, internal combustion engine and other rotating power equipment
2.Test the torque and power of fan, water pump, gear box and torsion plate
3.Railway locomotives, automobiles, tractors, aircraft, ships, mining machinery torque and power testing
4.Can be used in the sewage treatment system torque and power detection;
5.Can be used in the manufacture of viscometers
6.Can be used in process industry and process industry
7.Can be used in laboratories, testing departments and production monitoring and quality control
Technical parameters
| Item | Parameters |
| Model | SLZN |
| Torque range | 0±10KN.m(optional) |
| Torque output | 5-15KHZ,0±10V,0±5V,0-10V,4-20mA |
| Speed output | 60 pulse/r,4-20mA |
| Speed range | 0-5000 r/min |
| Measurement accuracy | 0.5% |
| Response frequency | 500μs |
| Supply voltage | 24VDC |
| Overload capacity | 150% |
| Zero drift | ＜0.5% |
| Environmental temperature | -40℃-80℃ |
| Relative humidity | ＜90%RH |
| Work amplitude | 10V |
| Surface treatment | Anodic treatment |
| Sensor material | alloy steel/stainless steel/aluminum |
| Sensor power consumption | 4W |

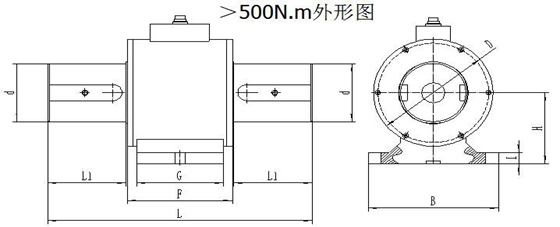

Outside view
Installation Instruction
Placement: Connection between torque sensor and power equipment and load equipment
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
